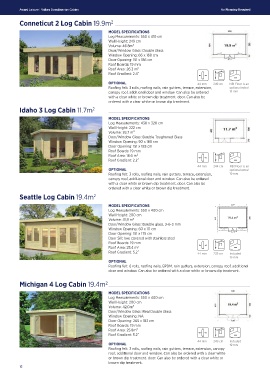

Page 12 - Valkea Cabin & Garden Buildings Brochure

Award Leisure | Valkea Scandinavian Cabins
Conneticut 2 Log Cabin 19.9m
Idaho 3 Log Cabin 11.7m
Seattle Log Cabin 19.4m
Michigan 4 Log Cabin 19.4m
12
No Planning Required
2
MODEL SPECIFICATIONS
Log Measurements: 550 x 410 cm
Wall Height: 249 cm
Volume: 46.8m³
Door/Window Glass: Double Glass
Window Opening: 66 x 168 cm
Door Opening: 151 x 186 cm
Roof Boards: 19 mm
Roof Area: 26.3 m²
Roof Gradient: 2.4˚
OPTIONAL 44 mm 249 cm NB! Floor is an
Roofing felt: 3 rolls, roofing nails, rain gutters, terrace, extension, optional extra!
canopy roof, additional door and window. Can also be ordered 19 mm
with a clear white or brown dip treatment. door. Can also be
ordered with a clear white or brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 430 x 320 cm
Wall Height: 222 cm
Volume: 26.7 m³
Door/Window Glass: Double Toughened Glass
Window Opening: 90 x 168 cm
Door Opening: 151 x 183 cm
Roof Boards: 19 mm
Roof Area: 18.6 m²
Roof Gradient: 2.2˚
44 mm 244 cm NB! Floor is an
OPTIONAL optional extra!
Roofing felt: 3 rolls, roofing nails, rain gutters, terrace, extension, 19 mm
canopy roof, additional door and window. Can also be ordered
with a clear white or brown dip treatment. door. Can also be
ordered with a clear white or brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 550 x 400 cm
Wall Height: 200 cm
Volume: 41,9 m 3
Door/Window Glass: Double glass, 3-6-3 mm
Window Opening: 60 x 111 cm
Door Opening: 151 x 175 cm
Door Sill: low, covered with stainless steel
Roof Boards: 19 mm
Roof Area: 25.4 m 2
Roof Gradient: 5.2˚ 44 mm 239 cm Included
19 mm
OPTIONAL
Roofing felt: 6 rolls, roofing nails, EPDM, rain gutters, extension, canopy roof, additional
door and window. Can also be ordered with a clear white or brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 550 x 400 cm
Wall Height: 200 cm
Volume: 42.0m³
Door/Window Glass: Real Double Glass
Window Opening: NA
Door Opening: 265 x 183 cm
Roof Boards: 19 mm
Roof Area: 25.8m²
Roof Gradient: 5.2˚
44 mm 249 cm Included
OPTIONAL 19 mm
Roofing felt: 3 rolls, roofing nails, rain gutters, terrace, extension, canopy
roof, additional door and window. Can also be ordered with a clear white
or brown dip treatment. door. Can also be ordered with a clear white or
brown dip treatment.
