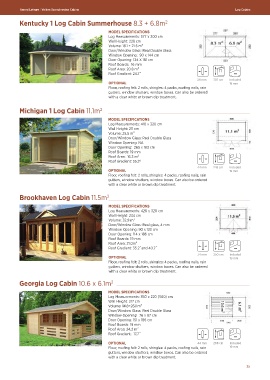

Page 25 - Valkea Cabin & Garden Buildings Brochure

Award Leisure | Valkea Scandinavian Cabins
Kentucky 1 Log Cabin Summerhouse 8.3 + 6.8m
Michigan 1 Log Cabin 11.1m
Brookhaven Log Cabin 11.5m
Georgia Log Cabin 10.6 x 6.1m
Log Cabins
2
MODEL SPECIFICATIONS
Log Measurements: 577 x 300 cm
Wall Height: 228 cm
Volume: 18.1 + 21.5 m³
Door/Window Glass: Real Double Glass
Window Opening: 90 x 144 cm
Door Opening: 134 X 181 cm
Roof Boards: 16 mm
Roof Area: 20.8 m²
Roof Gradient: 24.7˚
28 mm 307 cm Included
OPTIONAL 19 mm
Floor, roofing felt: 2 rolls, shingles: 4 packs, roofing nails, rain
gutters, window shutters, window boxes. Can also be ordered
with a clear white or brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 410 x 320 cm
Wall Height: 211 cm
Volume: 25.5 m³
Door/Window Glass: Real Double Glass
Window Opening: NA
Door Opening: 265 x 183 cm
Roof Boards: 19 mm
Roof Area: 16.3 m²
Roof Gradient: 35.2º
44 mm 249 cm Included
OPTIONAL 19 mm
Floor, roofing felt: 2 rolls, shingles: 4 packs, roofing nails, rain
gutters, window shutters, window boxes. Can also be ordered
with a clear white or brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 420 x 320 cm
Wall Height: 234 cm
Volume: 32.9 m³
Door/Window Glass: Real glass, 4 mm
Window Opening: 90 x 123 cm
Door Opening: 114 x 186 cm
Roof Boards: 19 mm
Roof Area: 21.0m²
Roof Gradient: 35.2˚and 40.7˚
34 mm 250 cm Included
OPTIONAL 19 mm
Floor, roofing felt: 2 rolls, shingles: 4 packs, roofing nails, rain
gutters, window shutters, window boxes. Can also be ordered
with a clear white or brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 350 x 220 (560) cm
Wall Height: 217 cm
Volume: 14.8+26.1 m³
Door/Window Glass: Real Double Glass
Window Opening: 76 x 87 cm
Door Opening: 151 x 186 cm
Roof Boards: 19 mm
Roof Area: 24.2 m²
Roof Gradient: 17.7˚
OPTIONAL 44 mm 268 cm Included
Floor, roofing felt: 2 rolls, shingles: 4 packs, roofing nails, rain 19 mm
gutters, window shutters, window boxes. Can also be ordered
with a clear white or brown dip treatment.
25
