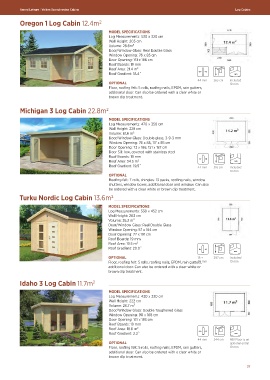

Page 27 - Valkea Cabin & Garden Buildings Brochure

Award Leisure | Valkea Scandinavian Cabins
Oregon 1 Log Cabin 12.4m
Michigan 3 Log Cabin 22.8m
Turku Nordic Log Cabin 13.6m
Idaho 3 Log Cabin 11.7m
Log Cabins
2
MODEL SPECIFICATIONS
Log Measurements: 530 x 320 cm
Wall Height: 205 cm
Volume: 28.6m³
Door/Window Glass: Real Double Glass
Window Opening: 76 x 85 cm
Door Opening: 151 x 186 cm
Roof Boards: 19 mm
Roof Area: 21.4 m²
Roof Gradient: 18.4˚
44 mm 263 cm Included
OPTIONAL 19 mm
Floor, roofing felt: 5 rolls, roofing nails, EPDM, rain gutters,
additional door. Can also be ordered with a clear white or
brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 470 x 350 cm
Wall Height: 228 cm
Volume: 61,6 m 3
Door/Window Glass: Double glass, 3-9-3 mm
Window Opening: 76 x 85, 117 x 85 cm
Door Opening: 73 x 186, 151 x 187 cm
Door Sill: low, covered with stainless steel
Roof Boards: 19 mm
Roof Area: 34.5 m 2
Roof Gradient: 19.9˚ 44 mm 318 cm Included
19 mm
OPTIONAL
Roofing felt: 7 rolls, shingles: 13 packs, roofing nails, window
shutters, window boxes, additional door and window. Can also
be ordered with a clear white or brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 330 x 452 cm
Wall Height: 203 cm
Volume: 35.2 m³
Door/Window Glass: Real Double Glass
Window Opening: 57 x 164 cm
Door Opening: 77 x 191 cm
Roof Boards: 19 mm
Roof Area: 19.5 m²
Roof Gradient: 20.0˚
OPTIONAL 18 + 297 cm Included
70 mm
Floor, roofing felt: 5 rolls, roofing nails, EPDM, rain gutters, 19 mm
additional door. Can also be ordered with a clear white or
brown dip treatment.
2
MODEL SPECIFICATIONS
Log Measurements: 430 x 320 cm
Wall Height: 222 cm
Volume: 26.7 m³
Door/Window Glass: Double Toughened Glass
Window Opening: 90 x 168 cm
Door Opening: 151 x 183 cm
Roof Boards: 19 mm
Roof Area: 18.6 m²
Roof Gradient: 2.2˚
44 mm 244 cm NB! Floor is an
OPTIONAL optional extra!
Floor, roofing felt: 5 rolls, roofing nails, EPDM, rain gutters, 19 mm
additional door. Can also be ordered with a clear white or
brown dip treatment.
27
